Robot Security Fence 5FT Workshop Isolation Fence Mesh Metal
Machine Guardrail
Workshop Isolation Fence Description
Safety machine guard is a device that prevents any part of the body
from entering the danger area of the machine and touching various
moving parts. It not only protects workers from injuring of flying
debris and splattering liquids, but also prevents the machinery
from damaging.
Safety machine guard is mostly made of stainless steel or carbon
steel. It can be welded directly to the machine or used as fencing
around the machine. With the performances of anti-rust and
anti-corrosion, there will not be any problem even if the safety
machine guards are exposed to water or corrosive liquids. In
addition, the mesh structure of safety machine guard will not
effect the operator's vision. So it can be used for many kinds of
equipment in factories and processing centers.
Workshop Isolation Fence Specification

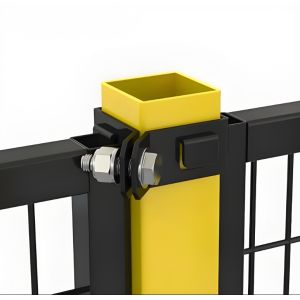

An all-steel, modular system of panels, posts, and hinged doors
protect machinery, employees and visitors. Easy to assemble with
interchangeable panels and posts. 10 Gauge or 8 Gauge welded wire
mesh with 1 1/4" x 21/2" grid openings welded to 1 1/2" x 1 1/2"
x 14 Gauge steel tube or steel angle frames.
Panel size:
2ftx5ft, 2ftx7ft, 3ftx5ft, 3ftx7ft, 4ftx5ft, 4ftx7ft, 5ftx5ft,
5ftx7ft, 8ftx5ft/
Post size:
Machine guard line post: 2inch 6ft, 8ft.
Offset Wire Partition post: 2inch, 8ft.
Wire Partition Corner Post: 2inch, 6ft.
Doors:
Machine Guard Hinged Door: 4ft x 7ft or 3ft x 7ft.
Welded Wire Door: 4ft x 5ft.
| Product Name | Robot Boundary Fencing |
| Color | Yellow, Black, Blue or customized |
| Usage | Factory Workshop, Warehouse, Production Line, Boundary fence |
| Certification | ISO9001:2008/CE/SGS/BV |
| Quality Standard | EN, BS, DIN, ASTM |
| Minimum Order Quantity | 50 pcs |
| Frame Tube | 40x40mm, 25x25mm, 20x30mm, 20x20mm |
| Wire Diameter | 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
| Mesh Hole | 50x50mm, 50x100mm, 25x100mm |
| Height | 2.0m, 1.8m, 1.7m, 1.5m, 1.2m, 1.0m or customized |
| Post Distance | 1.0m, 1.5m, 2.0m, 3.0m or customized |
Product Installation & Foot
Workshop Isolation Fence Features
Reasonable area planning for efficient storage.
Modular installation is adopted for flexible Installation and
removal. It can be both temporarily used and reused.
Mesh panels have various heights and widths for you to suit
dimensions of all taller made warehouse partition systems.
Welded mesh panels offer a clear and unobstructed view. It allows
light, air and far extinguishing systems passing through easily
while maintaining its structural stability in the best way.
Optional door components: swing door, sliding door, top rail door
or folding door.
Electro-galvanized or powder coating is employed for surface
treatment to ensure the luster and corrosion resistance of the
warehouse partition.

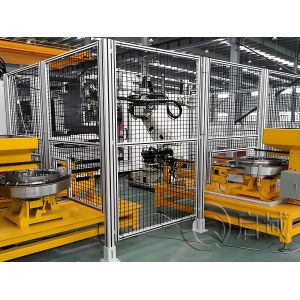

Workshop Isolation Fence Application
Packing & Delivery
